Mesh belt dryer

Fast drying speed, high evaporation intensity, large drying output,

and overall industrial improvement for enterprise users!

Hot selling products: orange peel mesh belt dryer, mesh belt chrysanthemum dryer, mesh belt radish dryer, mesh belt yam dryer

      Honeysuckle dryer

      Drying cycle: 4~8 hours

      Operating temperature: 40~80℃

      Matching heat source: combustion type, energy type, power consumption type, water heat type

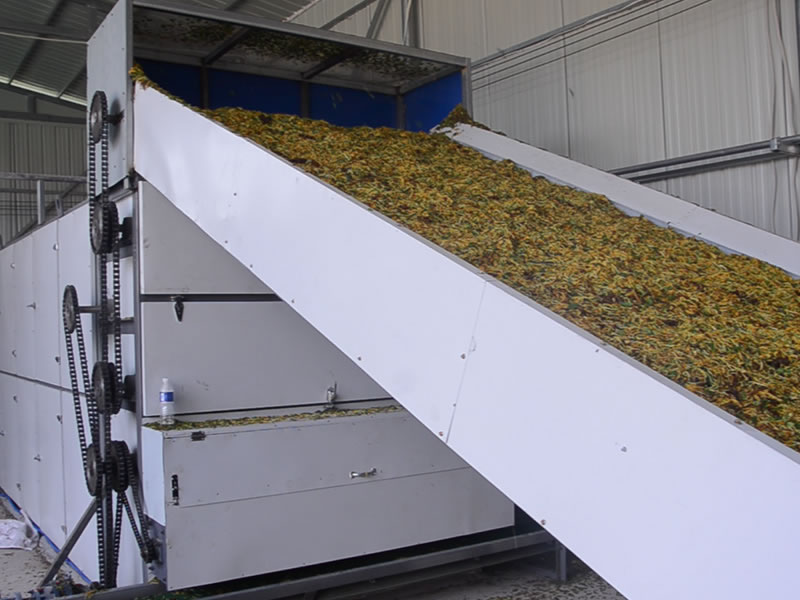

      The net belt type honeysuckle dryer adopts the strengthened circulating air system to dry honeysuckle, which has a high degree of automation and does not require special care. The temperature and humidity are adjusted according to the drying process of honeysuckle. Under the premise of ensuring the natural color and nutrition components are not damaged, the honeysuckle will be dried in a short time.

      We want customer to be successful. Customers from afar, hello! Today is 2025-05-01. Since the JUSUNG website http://www.hxgs888.com was built, you are the 45126th visitor to JUSUNG enterprise! JUSUNG has been committed to technological innovation and product building in the Food, Metallurgy, Chemical industry, Textile, Agriculture and Animal husbandry field since its establishment, and has accumulated to provide [Honeysuckle dryer] products for many customers!


      Product advantage of Honeysuckle dryer

      1. Large output: The dryer adopts multi-layer cyclic dynamic drying mode, which can be processed 24 hours by mass drying.

      2. High quality: the dried honeysuckle has bright color, complete shape and moderate moisture, which is trusted by users.

      3. Intelligent and accurate: The use of intelligent control system can ensure the temperature, time, air volume and other parameters control in the drying process.

      4. cost saving: only one person can complete the whole equipment, drying time is also shortened, saving labor and time cost.

      5. High heat energy conversion rate: Independently developed heat exchange device, which can be matched with various heat sources, the heat energy conversion rate is as high as 95%.

      6. clean health: the whole drying process is completed in the closed box, will not be polluted by the outside world.

      7 long equipment life: the overall running speed of the dryer is very slow, almost no wearing parts, in normal use, the service life is as long as ten to fifteen years or more.











      Technical parameter of Honeysuckle dryer



      Dryer model number

      Spreading area

      Handling capacity

      Total power

      Floor area (length * width * height)

      2×6 meters × 4 layers

      40㎡

      3tons

      15kw

      20*5*3.5meters

      2 x 8 meters x 4 layers

      56㎡

      5tons

      23kw

      22*5*3.5meters

      2 x 10 meters x 4 layers

      72㎡

      7tons

      28kw

      26*5*3.5meters

      2 x 12 meters x 4 layers

      88㎡

      9tons

      37kw

      28*5*3.5meters

      2 x 15 meters x 4 layers

      112㎡

      12tons

      64kw

      31*5*3.5meters

      2 x 20 meters x 4 layers

      152㎡

      15tons

      86kw

      36*5*3.5meters

      2.5 x 12 meters x 6 layers

      165㎡

      16tons

      55kw

      30*6*3.5meters

      2.5 x 15 meters x 6 layers

      210㎡

      18tons

      75kw

      33*6*3.5meters

      2.5 x 20 meters x 6 layers

      285㎡

      22tons

      103kw

      38*6*3.5meters

      2.5 x 25 meters x 6 layers

      360㎡

      25tons

      108kw

      43*6*3.5meters

      2.5 x 30 meters x 6 layers

      435㎡

      30tons

      130kw

      48*6*3.5meters

      Note: Coal or biomass is used as heat source, and chili is used as raw material.












      The above JUSUNG Machinery Equipment Co., LTD technical and engineering personnel sorted out the relevant information of Honeysuckle dryer product for you. Due to the limited space, please call JUSUNG Honeysuckle dryer product technical consultation hotline immediately: [+86 18539447368], JUSUNG are willing to provide you with new Honeysuckle dryer information to help you make the right choice! Creating a brighter future for all.
