Mesh belt dryer

Fast drying speed, high evaporation intensity, large drying output,

and overall industrial improvement for enterprise users!

Hot selling products: orange peel mesh belt dryer, mesh belt chrysanthemum dryer, mesh belt radish dryer, mesh belt yam dryer

      Yam mesh belt dryer

      Drying cycle: 4~8 hours

      Operating temperature: 40~80℃

      Matching heat source: combustion type, energy type, power consumption type, water heat type

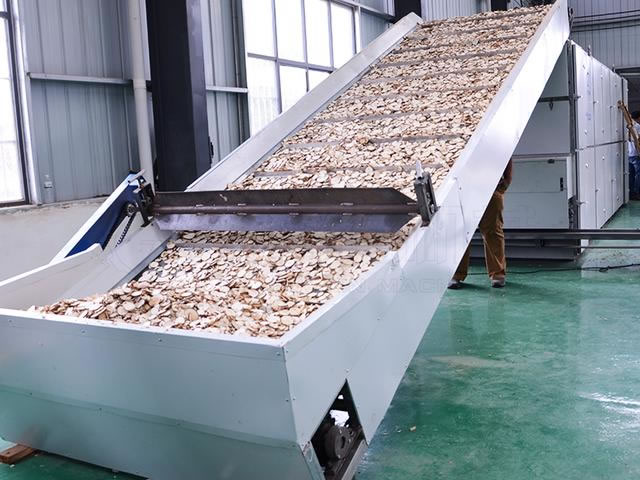

      Yam dryer is a mesh belt structure, this drying equipment to achieve a large volume of yam drying line production mode, the whole full automatic operation, effectively improve the efficiency of yam drying, save time and cost, not only to meet the customer's own yam drying, but also to the surrounding farmers yam drying.

      Dear [Yam mesh belt dryer] customer, it is very lucky that you can find us in the vast information!Assisted by science and technology!Since its establishment, JUSUNG has been deeply involved in the Food, Metallurgy, Chemical industry, Textile, Agriculture and Animal husbandry field and has provide Yam mesh belt dryer products for Food, Metallurgy, Chemical industry, Textile, Agriculture and Animal husbandry customers! The following is the relevant information of Yam mesh belt dryer product organized by JUSUNG Machinery Equipment Co., LTD for you. JUSUNG are willing to provide you with new Yam mesh belt dryer information to help you make a correct choice!


      Product advantage of Yam mesh belt dryer

      Large output: Using dynamic cycle turning mode for yam drying processing, can be 24 hours uninterrupted, mass, automatic, centralized drying processing;

      High efficiency: high efficiency heat conversion device + fully automatic mode, so that the drying efficiency of yam greatly improved, can achieve several tons a day, ten tons or dozens of tons of yam drying processing output;

      High quality: dynamic turnover structure, make the yam drying more uniform, intelligent control system and monitoring system application, make it always in a reasonable drying environment, so as to improve the quality of dry yam tablets.











      Technical parameter of Yam mesh belt dryer



      Dryer model number

      Spreading area

      Handling capacity

      Total power

      Floor area (length * width * height)

      2 x 6 meters x 4 layers

      40㎡

      3tons

      15kw

      20*5*3.5meters

      2 x 8 meters x 4 layers

      56㎡

      5tons

      23kw

      22*5*3.5meters

      2 x 10 meters x 4 layers

      72㎡

      7tons

      28kw

      26*5*3.5meters

      2 x 12 meters x 4 layers

      88㎡

      9tons

      37kw

      28*5*3.5meters

      2 x 15 meters x 4 layers

      112㎡

      12tons

      64kw

      31*5*3.5meters

      2 x 20 meters x 4 layers

      152㎡

      15tons

      86kw

      36*5*3.5meters

      2.5 x 12 meters x 6 layers

      165㎡

      16tons

      55kw

      30*6*3.5meters

      2.5 x 15 meters x 6 layers

      210㎡

      18tons

      75kw

      33*6*3.5meters

      2.5 x 20 meters x 6 layers

      285㎡

      22tons

      103kw

      38*6*3.5meters

      2.5 x 25 meters x 6 layers

      360㎡

      25tons

      108kw

      43*6*3.5meters

      2.5 x 30 meters x 6 layers

      435㎡

      30tons

      130kw

      48*6*3.5meters

      Note: Coal or biomass is used as heat source, and chili is used as raw material.













      Let us transform your ideas into reality today! Brand achievement is not the pursuit of JUSUNG. How to make JUSUNG [Yam mesh belt dryer] quality stable and reliable, provide products for the International friends, and improve the international competitiveness of made in China is the direction that JUSUNG are committed to pursuing!


      After receiving service requests, JUSUNG will respond through telephone or email support within the response time stipulated by service level to help customers analyze, diagnose and locate problems, provide solutions to problems, and guide customers to implement them. To enable customers to enjoy more convenient and comprehensive consultant-type expert services.

      Please note: We will NOT share your information with any third parties! JUSUNG respect your privacy and will only use your details to provide the information requested.
